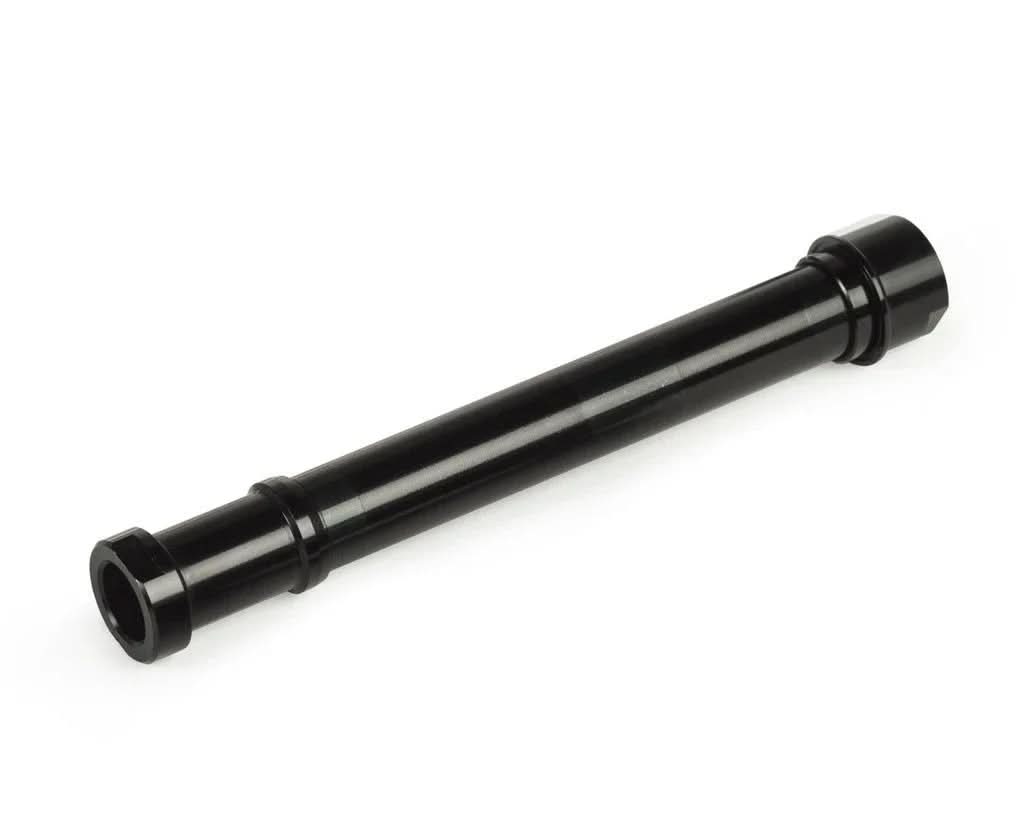

DISC BRAKE AXLE KITS





Front

12mm Thru-Axle to 15mm Thru-Axle - HU502FAxle

12mm Thru-Axle to Quick Release - HUCLQR-F

15mm Thru-Axle to 12mm Thru-Axle - HUCL12Kit-F

Quick Release to 12mm Thru-Axle - HU503FAxle

Quick Release to 15mm Thru-Axle - HU502FAxle

Rear

Quick Release to Thru-Axle 5 Pawl - HU503RAxle

Thru-Axle to Quick Release 5 Pawl - HUCLQRKit5-R (sold out)

The 545 hub set is convertible between quick release and thru axle!  When ordering online, please specify in the drop down menu which axle you need.

Note:

Lockring not included. A Shimano external 16 notch lockring, such as the XT M8010 is required to complete the 15mm axle conversion.

Front Hub conversion from 15mm to 12mm or QR require smaller internal diameter bearings and a center sleeve. These are included in Part #'s HUCL12Kit and HUCLQRKit.

    -Purchase either Kit part # HUCL12Kit to convert from 15mm to 12mm or HUCLQRKit to convert to QR.

* QR axle kits do not include Skewers. HU620 and HU626 sold separately.
